CT-B2B GLU

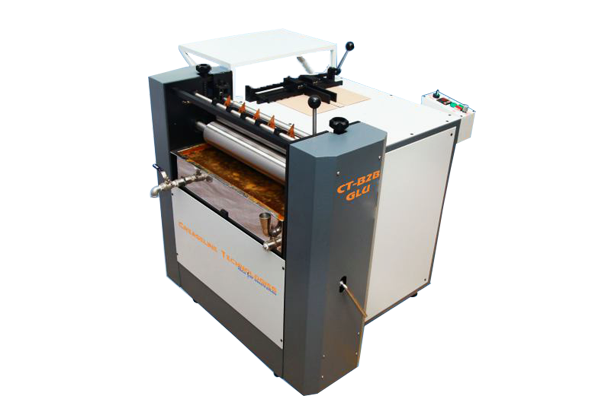

Creaseline CT-B2B GLU machine,with Hotmelt gluing system. Its ensures Superior & uniform gluing. B2B Glu is designed and developed with special concern on Board gluing. Its Very Compact with completely Stainless steel Rollers. Creaseline B2B Glu is such a product with a range of uasability

  • Specification v
    Description
    Model: CT-B2B GLU
    Max. Book Size
    480mm
    Board Thickness
    190gsm to 0.5mm
    Production
    As per operator
    Glue
    Hot and Cold
    Power
    0.5HP (3 phase)/Single Phase
    Heater
    2kw/Single Phase
    Dimensions
    H 940mm X L 1030mm X W 980mm
    Weight
    200kgs
    Gluing System
    Bottom Gluing
    Gluing system
    Bottom
    Man Power
    one
    Materials
    Art Card, Duplex Board
  • Discription v

    Creaseline CT-B2B GLU machine,with Hotmelt gluing system. Its ensures Superior & uniform gluing. B2B Glu is designed and developed with special concern on Board gluing. Its Very Compact with completely Stainless steel Rollers. Creaseline B2B Glu is such a product with a range of uasability

  • Applications v

    Glue system for Hard bound books, Diaries, Files, Registers, Note books, Calenders, Clip Board to Board pasting for duplex boards, Pharamaceutical catalogs and other packaging items
