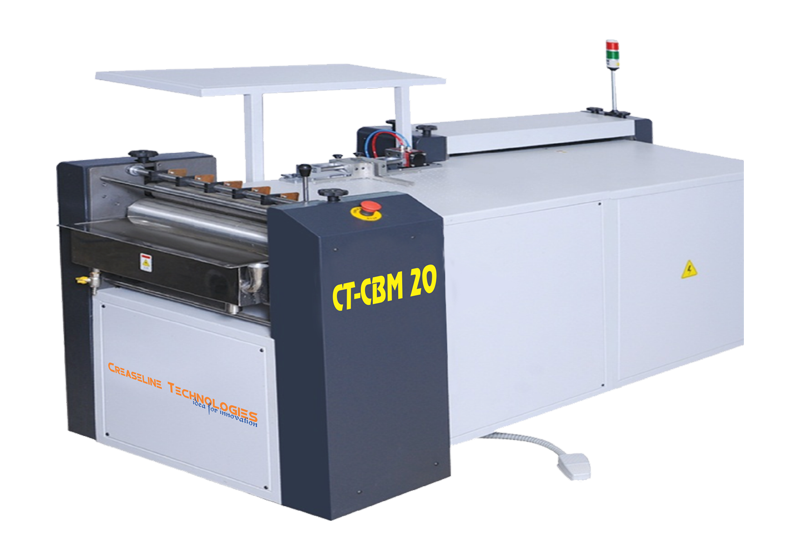

CT-CBM 20

Hard Case Binding machine is used to make perfect book covers, Note Book Covers, Calenders, Hanging Calenders, Files etc.

  • Technical Specification v
    Description
    Model: CT CBM 20
    Max. Paper Size
    480mm X 600mm
    Min. Paper Size
    150mm X 200mm
    Board Thickness
    1mm - 6mm
    Turning in Width
    15mm - 40mm
    Paper GSM
    100gsm - 180gsm
    Glue
    HOT/COLD Easy Fix Tank
    Power
    1.5kw/2HP/(3 phase)/Single Phase
    Heater
    2kw/2.6HP/Single Phase
    Dimensions H
    160mm X L 2100mm X W 2100mm
    Weight
    1200kgs
    Gluing System
    Bottom
    Production
    300 Cases/hr
    Materials
    Paper, Laminated Paper,Coated Paper Sheet etc.
  • Applications v

    Hard Case Binding machine is used to make perfect book covers, Note Book Covers, Calenders, Hanging Calenders, Files etc.
