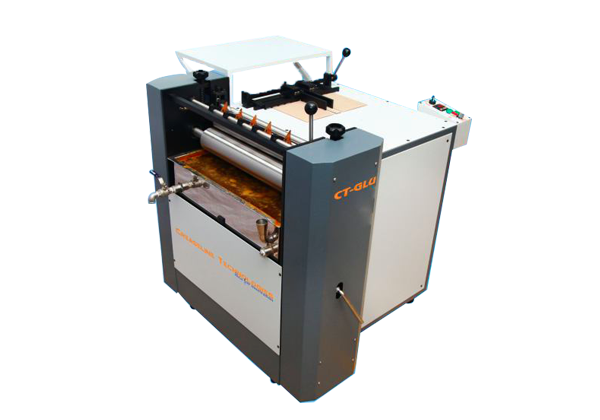

CT GLU

Creaseline CT-CLU machine, with Hotmelt gluing system. Its ensures Superior & uniform gluing B2B Glu is designed and developed with special concern on Board gluing. Its Very Compact with completely Stainless steel Rollers. Creaseline CT Glu is such a product with a range of usability.

  • Technical Specification v
    Description
    Model: CT-GLU
    Max. Book Size
    490mm
    Min. feedng size
    100mm*100mm
    Paper Thickness
    40gsm to 200gsm
    Glue
    Hot and Cold
    Power
    0.5 Hp (3 phase)/Single Phase
    Heater
    2Kw/ Single Phase
    Dimensions
    H 940mm XL 1030mm X W 980mm
    Weight
    200kgs
    Gluing system
    Bottom
    Man Power
    one
    Materials
    Paper, Laminated Paper, Paper coasted sheet, rexin etc
  • Discription v

    Creaseline CT-GLU machine, with Hotmelt gluing system. Its ensures Superior & uniform gluing B2B Glu is designed and developed with special concern on Board gluing. Its Very Compact with completely Stainless steel Rollers. Creaseline CT Glu is such a product with a range of usability.

  • Application v

    Glue system for Hard bound books, Diaries, Files, Registers, Notes Books, Calender, Clip Boards to Board pasting for duplex boards, Pharamaceutical catalogsand other packaging items.
