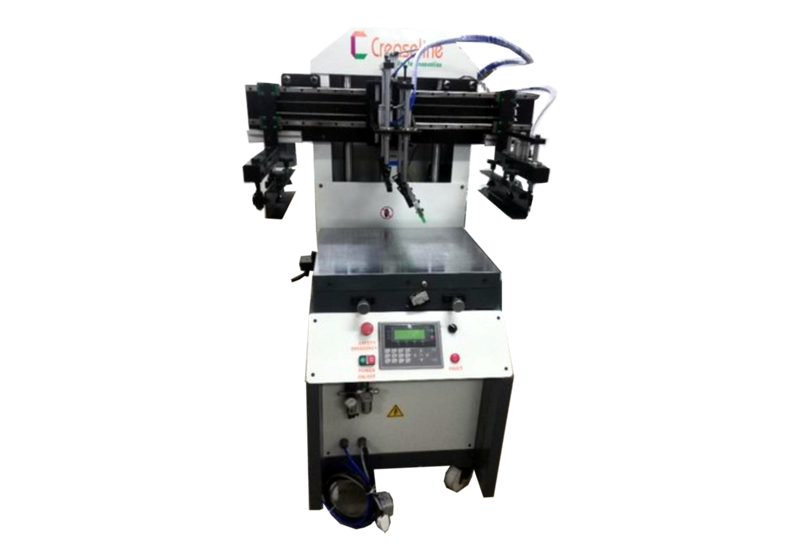

CT - SPM

SPM

It is suitable for Textile Fabric Print, Product Label Print, Packing Materials, Boxes, Paper, Wood, Cloth, Flute Boards etc.

Specification


Description Model: CT - SPM
Max. Print Area22" x 28" (559 mm x 711 mm)
Vacuum Bed26.7" x 35.9" (678 mm x 912mm)
Vacuum Bed Movement+ or - 5 to 7 mm for Registration
Screen Frame Size Min26" x 20" (660 mm x 508 mm)
Max20" x 30" (864 mm x 1016 mm)
Max OffContact 10 mm
Max Substrate Thickness5 ~ 7 mm (Depends on Mesh Tension)
Screen Frame Thickness1.0" ~ 1.5"
Squeegee Holders16" (406 mm) min & 24" (610 mm) max
Squeegee Holders Angle30o / 15o
Flood Coater20" (508 mm) min & 26" (660 mm) max
Power Consumption220V AC, Single Phase, 6 Amps, 50 HZ, 1.5 HP (1.2 KW)
Dimensions(LxWxH) 56" x 40" x 49" (1428 x 1015 x 1244 mm)
Weight450 Kg

Applications

Press is suitable for Textile Fabric Print, Product Label Print, Packing Materials, Boxes, Paper, Wood, Cloth, Flute Boards, Caps, Balloons, Pickup bags, Decals, Medical Devices, Printed Electronics etc.
