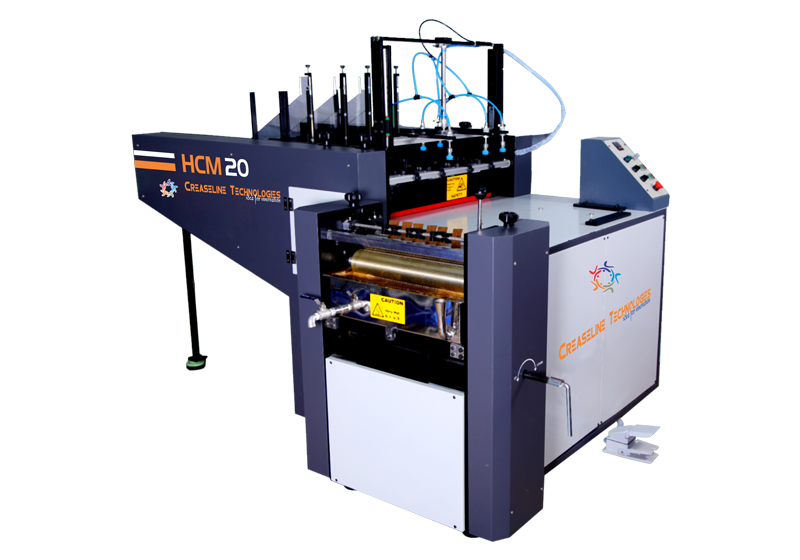

HCM20

Book Case Machine is used to make perfect Book Covers, Note Book Covers, Hanging Calenders, Files etc.,

  • Specification v
    Description
    Model: HCM20
    Max. Paper Size
    480mm X 680mm
    Min. Paper Size
    150mm X 200mm
    Board Thickness
    1mm - 6mm
    Turning in Width
    15mm - 40mm
    Paper GSM
    100gsm - 180gsm
    Glue
    HOT/COLD Easy removable system for glue tank
    Power
    1.5kw/2HP/Single Phase or 3 Phases
    Heater
    2kw/2.6HP/Single Phase
    Dimensions H
    1600mm X L 2100mm X W 2100mm
    Weight
    1200kgs
    Gluing System
    Bottom Gluing
    Production
    400 Cases/hr
    Materials
    Paper, Laminated Paper,CoatedPaperSheet etc.
    Air Compressor Pneumatic
    6 - 10 bar 110 Tank Capacity 0.5HP (If required)
  • Discription v

    Book Case Machine is used to make perfect Book Covers, Note Book Covers, Hanging Calenders, Files etc.,

  • Advantage v
    • Single phase plug and play
    • Minimum maintanance, Minimum settings, Reduces Manpower.
    • Fast & Premium production.
    • No hidden cost, it's fully featured.
    • Minimum investment, Faster returns.
